SDE7 Dual Axis Worm Gear Drive Gearbox With Self Locking Feature For PV Panel Solar Trackers

Name: SDE7 Dual Axis Worm Gear Drive Gearbox With Self Locking Feature For PV Panel Solar Trackers
Brand: HangTuo
Price: 100 USD

China SDE7 Dual Axis Worm Gear Drive Gearbox With Self Locking Feature For PV Panel Solar Trackers wholesale

Brand Name : HangTuo

Model Number : SDE7

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 piece

Price : USD 100~1600/ pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 pcs per month

Delivery Time : 15~45 days

Packaging Details : plywood box

Material : 50Mn, 42CrMo

Output Torque : 2000 Nm

OEM : Available

Tilting Torque : 7500 Nm

Holding Torque : 13200 Nm

Gear Ratio : 57:1

Feature : Quick Installation

Precision : ≤0.1°

Contact Now

SDE7 Dual Axis Worm Gear Drive Gearbox With Self Locking Feature For PV Panel Solar Trackers

Description

7 inch 2 axis or dual axis Solar Tracker with slewing drive accuracy up to 0.1 deg and back structure for 15 pieces of solar panels dimensions 0,99 m x 1,64 m and weight of 20 kg max each. So together for 30 m2 solar panel surface.

Applications

PV panels

Concentrators - CPV, heliostats

On-grid at roof on houses, street light, cottages, small and large power plants

System Safety

Max. wind speed in operating in any working position is 20 m/s, if more higher wind speed, your system should be in safe position.

SDE Type Data Sheet

Model	Ratio	Rated Output Torque(N.m)	Tilting Torque (N.m)	Holding Torque (N.m)	Axial Load (kN)	Radial Load (kN)	Efficiency	Precision (°)	Self-locking	Weight (kg)
3"	31:1	600	1500	5800	10	15	40%	≤0.1	Yes	25
5"	37:1	800	6000	9200	16	27	40%	≤0.1	Yes	34
7"	57:1	2000	7500	13200	34	58	40%	≤0.1	Yes	56
9"	61:1	4300	16000	27200	60	130	40%	≤0.1	Yes	92
12"	78:1	5800	25000	40560	77	190	40%	≤0.1	Yes	160
14"	85:1	6750	48000	44200	110	230	40%	≤0.1	Yes	224
17"	102:1	9460	67000	53040	142	390	40%	≤0.1	Yes	320
21"	125:1	16000	89000	65000	337	640	40%	≤0.1	Yes	492
25"	150:1	21450	112000	89000	476	950	40%	≤0.1	Yes	705

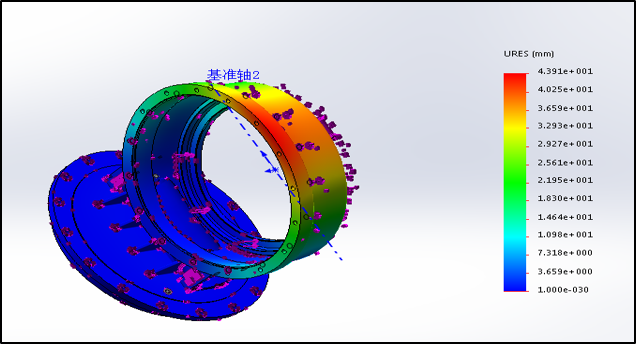

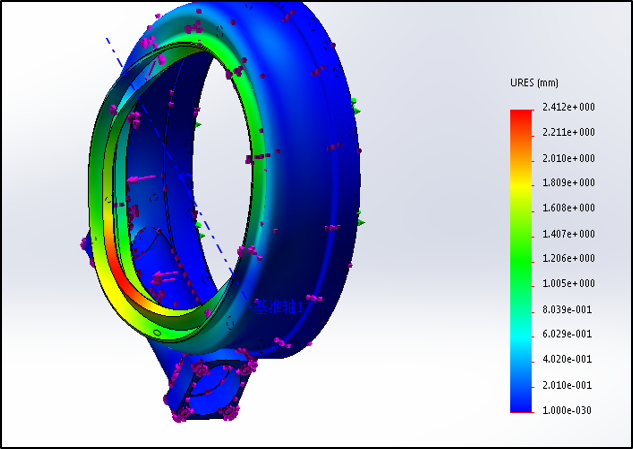

Design for Product

We can provide all the standard products or specially design based on customer’ requirement.

SDE7 Dual Axis Worm Gear Drive Gearbox With Self Locking Feature For PV Panel Solar Trackers
