9 Inch Vertical Slewing Bearing Drive For High Holding Torque Solar Tracking System

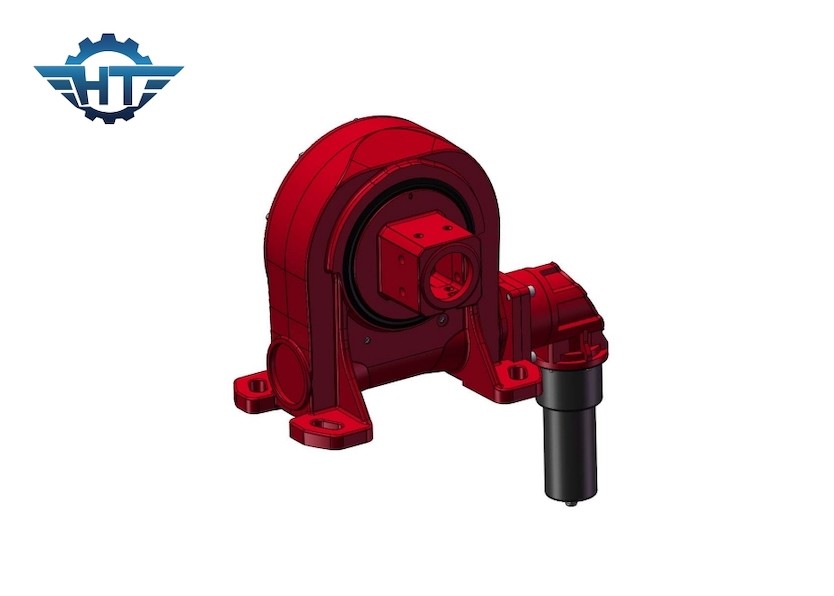

Vertical Slewing Bearing Drive Description
The rotary slewing drive is easy to use and install. To save space, first consider whether the parameters such as shaft radial bearing and overturning moment are suitable for use. Secondly, in order to ensure the normal service life of the product, the output speed of the rotary slewing drive cannot exceed 3 revolutions.
Parameters of VE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Application
The slewing drive device can be used in any occasions where full-circle rotation is required at the same time as the speed change is required. When it is necessary to realize the power transmission of larger torque, the transmission of higher precision motion, or the choice of the mechanism that requires a compact body structure and high integrity, the slewing drive Devices are the solution. The more common applications are usually the full-circle rotary structure of engineering and construction machinery, as well as solar energy, wind energy and various long-term automatic tracking machinery. It is easy to carry out digital control, so it has many applications in the field of industrial robots.
Applications include solar trackers, wind turbines, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, automotive lifts and wind turbines, dishes, satellite antenna etc.
