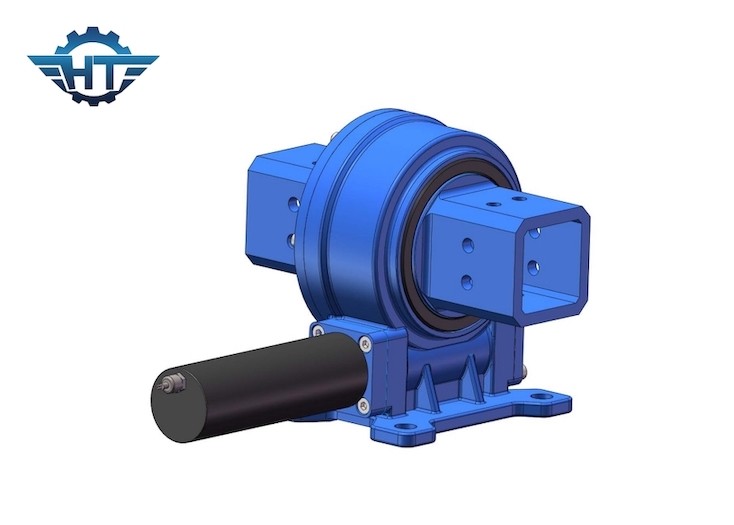

VE5 Single Axis Slewing Bearing Drive Vertical 533 Nm For Sun Tracking System

  • 1
  • 2

Brand Name : HangTuo

Model Number : VE5"

Certification : CE, ISO9001

Place of Origin : Changzhou, China

MOQ : 1 piece

Price : USD 100~1100/ pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000 pcs per month

Delivery Time : 15~45 days

Packaging Details : plywood box

Power Supply : 24 V

Type : Vertical Single Axis

Output Torque : 533 Nm

Output Speed : 0.065 RPM

Feature : Double Envelop

Usage : Sun Tracking System

Protect Feature : IP66

Contact Now

VE5 Single Axis Slewing Bearing Drive Vertical 533 Nm For Sun Tracking System

Single Axis Slewing Bearing Drive Description

Hangtuo's slewing units are equipped with a low-maintenance IP66-rated enclosure that protects against environmental contaminants such as dust, dirt, sand and water. Through rigorous testing, we can back it up with a 30-year product warranty.VE5 Single Axis Slewing Bearing Drive Vertical 533 Nm For Sun Tracking System

Performance Data of VE Series Slewing Drive

Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251

Application

Slewing drive is a perfect product for the application which requires rotational torque strength.It is designed in solar photovoltaic panel rotation and improves power generation efficiency. Single axis & dual axis solar tracking solutions are available. Slewing drives are used to rotate the pedestal in wind turbines. It is widely applied on mounted truck crane, aerial working platform, dock crane, timber grab, automation/assembly line, robotic arm. It can also be used for space communications and global positioning systems in satellite dish.
